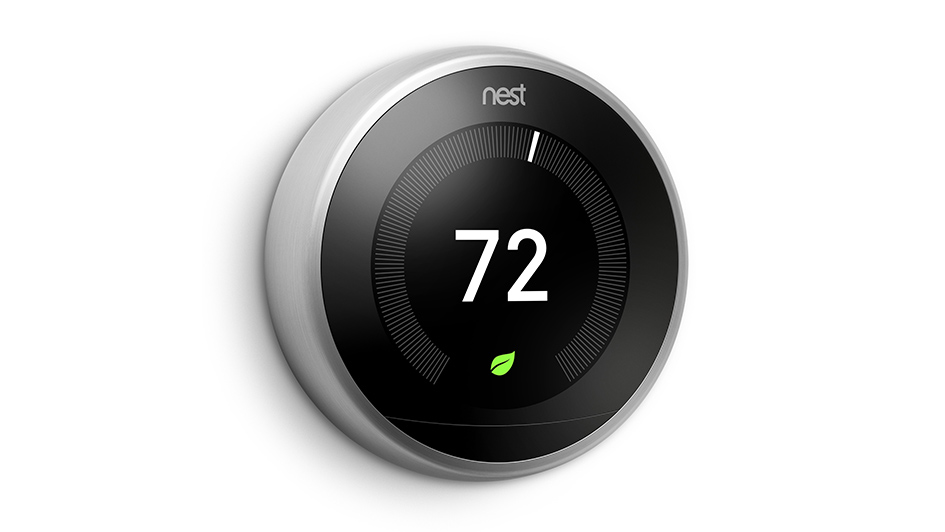

Using a Nest thermostat is one of the best ways to perfect the daily schedule of your heating and cooling. This smart thermostat can learn your preferences and automatically make changes. But as you may expect, it won’t work properly or at all if you see an error code appear. The precise error code supplies useful information about the root of the problem, something a trained technician can use to present solutions that much sooner.
Here are seven of the most common error codes you could discover on your Nest thermostat. We’ll walk you through the basics of each error code along with how you can fix it and the approximate cost to do so. Don’t forget that while the price will ultimately depend on the precise Nest model, you can count on paying about $75-$200 for repairs. This should include things like travel and labor costs along with any specific hardware required to wrap up repairs.
e298 – Critical
This critical error code is limited to new models of the Nest thermostat and is displayed when the power is detached from the system. As this is a critical power error, the thermostat will swap to the backup battery system. The error message will remain on the screen until the problem is resolved.
Losing power to your Nest thermostat can be for numerous reasons. The wiring could have disconnected or become damaged, or a disconnection might have occurred further along in the electrical system. This may be the circuit breaker, fuse box or system switch. A professional technician will check electrical connections and wiring until they locate the root of the problem.
e294 – Critical
Critical error code e294 is displayed when your Nest thermostat’s wiring has to be reconfigured. More specifically, you’ll need the technician to reconfigure the R wire. They’ll first complete a factory reset of your thermostat to make sure it’s not just a software error. If that doesn’t work, they’ll check the wiring diagram of the thermostat and begin checking connectors.
They’ll disconnect the power and slowly inspect each wire, making sure they are fully attached into the connector with the correct amount of bare copper. After they find the malfunctioning connector, it can be swapped for a new one.
e195 – Critical
This critical error code can surface when the weather outside is severely hot. The HVAC system can fail and stop delivering power to your Nest thermostat. When this problem lingers, the backup battery in your thermostat drains and the thermostat will eventually shut down. Assuming the breakers are on, you can check a couple of other places before contacting a professional technician.
Because this error can consume your thermostat’s battery, the first step may be providing enough power to find out if this specific error code is what you’re dealing with. You can separate the thermostat from its base and supply power through a USB cable. In the event it presents error code 195, you may continue to visually check components like the wiring as well as your air conditioner’s air filter or drainage system. If you struggle to detect anything wrong with these components, it will probably be best to get in touch with a pro.
e103 – Critical
Another critical error code, e103 indicates an electrical malfunction with your Nest thermostat. More specifically, e103 may refer to an overcurrent problem, which means the wiring is receiving more power than needed. This can stem from the breaker box, an error from the control board or because of a faulty connection in the thermostat. The technician should cautiously investigate and test the Nest’s electrical system to understand where the power is surging or why the thermostat thinks there’s an overcurrent problem.
n260
While this error code isn’t critical, it could still stop you from using the Nest thermostat how you prefer to. Error code n260 pertains to the lack of a C wire or Nest Power Connector, as missing one can block your Nest from receiving sufficient power. You can inspect the Nest’s C connector for the presence of a C wire and adapt the wiring itself if there is. If not, you need a Nest Power Connector.
Due to installation of a Nest Power Connector, you might notice error code E297 appear. This can be dealt with by updating your thermostat in Settings -> Software -> Update. If the Power Connector is already installed, you’ll instead have to update the wiring info in the app from Settings -> Thermostat -> Wiring -> Update wiring.
e104 – Critical
Just like error code e103, e104 is a critical error originating from an overcurrent. If excessive power is being delivered through the Nest’s wiring, it can damage internal components and may even be a fire hazard. If you notice this error code appear on your Nest thermostat and want to guard against electrical damage, it’s recommended to switch the power off straightaway. You can then contact a professional technician with the proper experience identifying and solving electrical issues.
e73 – Critical
When your thermostat displays error code e73, it indicates that the Rc wire is not receiving power.
This may be as straightforward as the breaker being shut off, but it could also be an issue with the wiring. After shutting off the power to your HVAC system and thermostat, you can visually check the wires to make sure they’re not loose or damaged. If nothing seems to be out of place, it’s time to contact a local professional.
